True all-rounders-sectional doors can be realized in two versions. The aluminum version is more suitable for visually demanding use, whereas the steel version is best suited for applications where maximum safety and insulation are important. In both doors, the light-band sections convince with high light transmission and excellent insulating properties. When open, the door lies flat under the ceiling. We distinguish between different types of deflection to suit the individual installation situation. The standard is suitable for a lintel height of at least 450 mm.
2mm
With insulating filling or disc
Specially developed, particularly solid hinges
Optical closing edge protection possible
Version with low threshold possible
Predominantly stainless steel components, stainless steel track & frame also possible
Other sizes possible within the scope of custom constructions. Incl. use of movable center supports for particularly large openings, e.g. >20 m clear passage width.
46 AL (aluminum door)
46 SA (steel/aluminum door)
46 SAS (steel-aluminum-steel door)
42 ST (steel sandwich panel door)
Wicket doors opening outwards
Optional: version with low threshold
The following 4 colors are available as standard for the 42 ST:
RAL 7016 - Anthracite grey
RAL 9002 - Grey white
RAL 9006 - White aluminum
RAL 9007 - Grey aluminum
Finger pinch protection version only in RAL 9002 as standard color
46 AL: visible sections anodized E6/EV 1 as standard, optional: RAL of choice
Double-sided aluminum sheet with stucco-designed surface embossing and internal polystyrene insulation core.
Double-sided aluminum sheet panel with internal polystyrene insulation core. Anodized in E6/EV as standard.
Steel including powder coating or aluminum, incl. aluminum clamping strips.
When using the lattice bar filling, a pull-in protection is required. This is to prevent people from being pulled in when the door is raised.
The perforated sheet infill is an aluminum sheet with square perforations. Can be powder-coated in natural aluminum or according to the RAL palette.
The Ecotop double glazing is the optimal pane for narrow budgets. This pane is used as standard glazing.
The beaded surface lets light in, but not prying eyes from outside. It diffuses the light and offers a high level of glare protection in direct sunlight.
With Energy triple glazing, you minimize your energy costs. It is a future-proof solution that contributes to increasing the energy efficiency of the building.
HARD Surface coating:
All panes can optionally receive a nano-surface coating, which leads to a glass-like, very scratch-resistant surface and to increased chemical resistance as well as optical brilliance - our HARD coating closes the gap to real glass systems.
REAL GLAS:
Depending on the door specification, panes can also be optionally made of real glass, which is the most robust version.

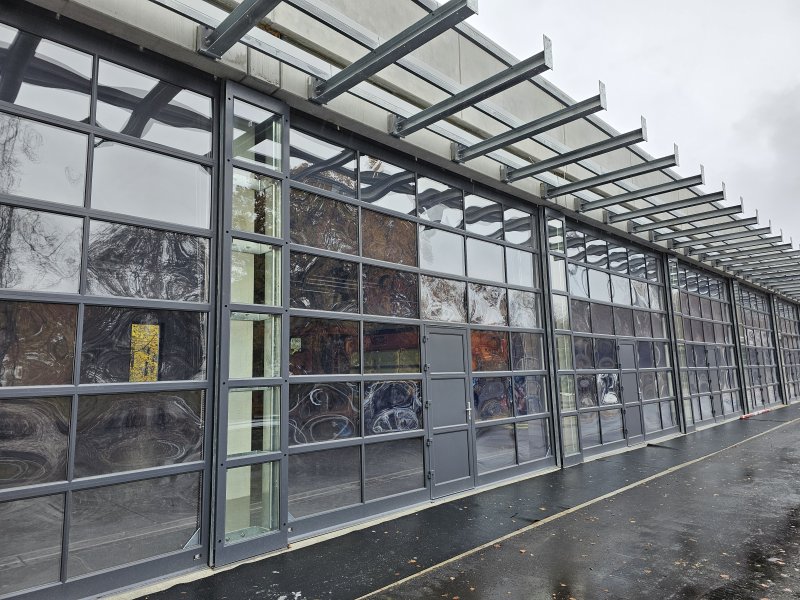

Sectional doors with movable central supports offer the opportunity to flexibly close hall openings over 20 m wide. With electric operation and radio control, the door can also be opened from the cockpit.
