Overhead folding doors

Overhead folding doors are ideal for building areas where the full room height is required – for example for lifting platforms – or to optimize structural conditions. The low insertion depth is particularly advantageous for halls with skylights, glass roofs and façades. The incidence of light and the view remain unobstructed under all circumstances.

Conveniently stowed away at the top

Overhead folding doors

The door leaf is divided into 4 or 6 horizontal sections. The sections are connected to each other by corrosion-resistant hinges made of aluminum and brass. The hinges are located on the outside of every second section. The construction depth of the extruded aluminum hollow profiles used is 46 mm. The profiles are connected to each other with self-tapping screws in the screw channels provided to form a section. The wall thickness of the profiles is at least 1.5 mm with additional reinforcements on the loaded surfaces.

ROBUST

The following options are available for the infills: Aluminum sheet on both sides with stucco-designed surface embossing, smooth sheet with internal insulation core made of polystyrene and a construction depth of 28.5 mm and various glazing. The infill panels are sealed on the outside with UV-resistant three-lip rubber profiles in EPDM quality.

On the inside, the infill panels of the individual bays are held in place with snap-in, UV-resistant PVC or aluminum clamping strips, which allows for easy replacement during servicing. Panes with scratch-resistant surfaces, triple energy-saving glazing and pearl glass surfaces are optionally available. Furthermore, for reasons of sufficient ventilation, expanded metal, ventilation grilles or perforated sheeting can be used. On request, the door leaf can be powder-coated on both sides in all colors of the RAL palette. The panels filled with aluminum sheet can also be powder-coated on one or both sides.

Powerful drive

The weight-balanced door is operated by means of a slip-on drive, with digital limit switch technology (electronic absolute encoder). In the event of a power failure, the door system can be opened or closed using the emergency hand crank or emergency hand chain supplied. With the help of a chain transmission, the required side space can be reduced in confined installation situations. The use of a direct drive with integrated safety catch is also possible.

Fields of application
- Wash bays
- Car dealers and garages
- Machine enclosures
- and much more.
Our advice
Do you want to save space?

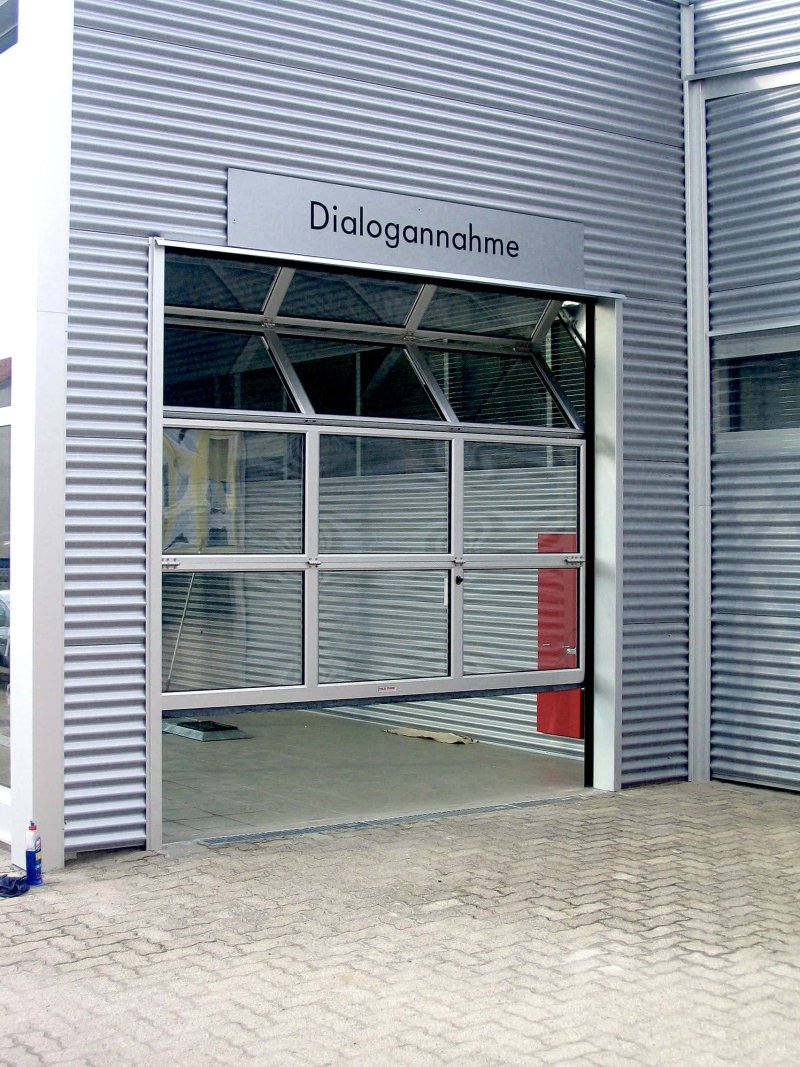

Compact folding of the sections behind the lintel is unbeatable for garages, direct acceptance and car dealers.
LOW LINTEL VERSION (OPTIONAL)

Lintel requirement from 200 mm

FOLDING MECHANISM

Minimal space requirement due to compact folding mechanism

SECURITY
  • Side gripping protection
  • Laser scanner
HINGES

Special corrosion-free aluminium-brass hinges

SEKTIONEN

Profile equality / view equality to sectional doors possible

END STRIP / SEAL

Optical closing edge protection possible

Highlights and features

Short Facts

WIDTH / HEIGHT
Icon 4,9m / 5m
TYPES OF DOORS

46 ADF

DOOR LEAF DESIGN / DOORS
OPERATION
  • E-drive with torsion spring
  • Direct drive with solid shaft



CHOICE OF COLOR

E6/EV 1 anodized as standard

Optional: RAL of your choice

SELECTED FILLINGS

Aluminum STUCCO PANEL (standard)


Double-sided aluminum sheet with stucco-designed surface embossing and internal polystyrene insulation core.

Aluminum SHEET PANEL (optional)


Double-sided aluminum sheet panel with internal polystyrene insulation core. Anodized in E6/EV as standard.

EXPANDED METAL (optional)


Steel including powder coating or aluminum, incl. aluminum clamping strips.

LATTICE BAR FILLING (optional)


When using the lattice bar filling, a pull-in protection is required. This is to prevent people from being pulled in when the door is raised.



PERFORATED SHEET (optional)


The perforated sheet infill is an aluminum sheet with square perforations. Can be powder-coated in natural aluminum or according to the RAL palette.

PANE DESIGNS

ECOTOP (standard)


The Ecotop double glazing is the optimal pane for narrow budgets. This pane is used as standard glazing.

PEARL (optional)


The beaded surface lets light in, but not prying eyes from outside. It diffuses the light and offers a high level of glare protection in direct sunlight.

ENERGY (optional)


With Energy triple glazing, you minimize your energy costs. It is a future-proof solution that contributes to increasing the energy efficiency of the building.

Our Extra

HARD Surface coating:
All panes can optionally receive a nano-surface coating, which leads to a glass-like, very scratch-resistant surface and to increased chemical resistance as well as optical brilliance - our HARD coating closes the gap to real glass systems.

REAL GLAS:
Depending on the door specification, panes can also be optionally made of real glass, which is the most robust version.
